Small Rubber Casters Mini 2" 25kg

Availability:



Inquire

Model:
20112-202-02
Code:
8302200000
Port:
Ningbo, China
Production Capacity:
2500PCS/Month
Payment Terms:
L/C, T/T
Transport Package:
by Carton
Model NO.:
20112-202-02
Category:
Mini
Wheel Width:
15mm
Bracket Thickness:
1.5mm
Mounting Type:
Plate Swivel
Bracket Width:
22mm
Installation Height:
64mm
Frame Material:
Cold-Rolled Plate
Tread Material:
Po
Coating:
Zinc Coating
Applicable Temp.:
-20ºC~80ºC
Tread Color:
Black
Tread Hardness:
67D
Trademark:
no
Origin:
Zhejiang
HS Code:
8302200000
Brake:
Without Brake
Bearing Type:
Rivet
Surface Treatment:
Zinc Plated
Maximum Load:
25kg
Diameter:
50mm
Thickness:
1.5mm

Product Description

Product Description

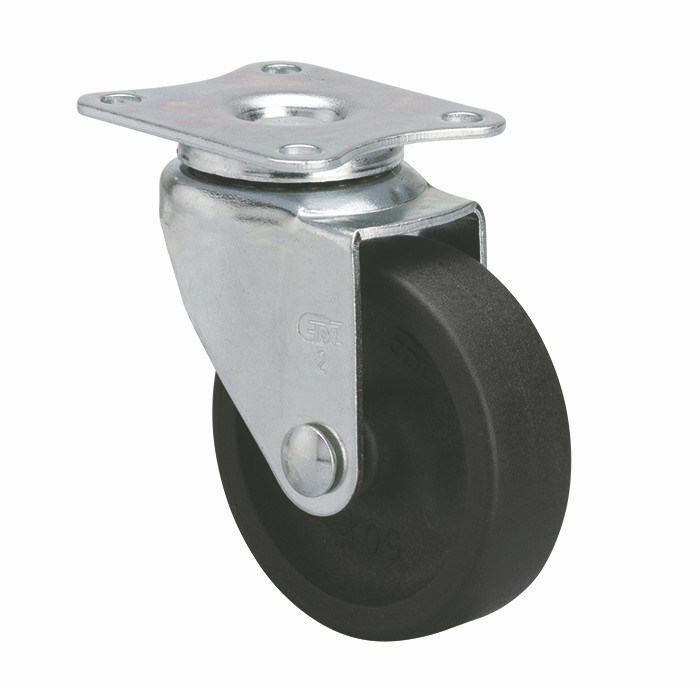

Product Photos:

Mini 2

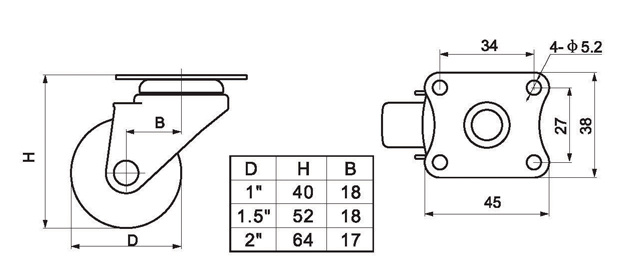

Mounting Instruction:

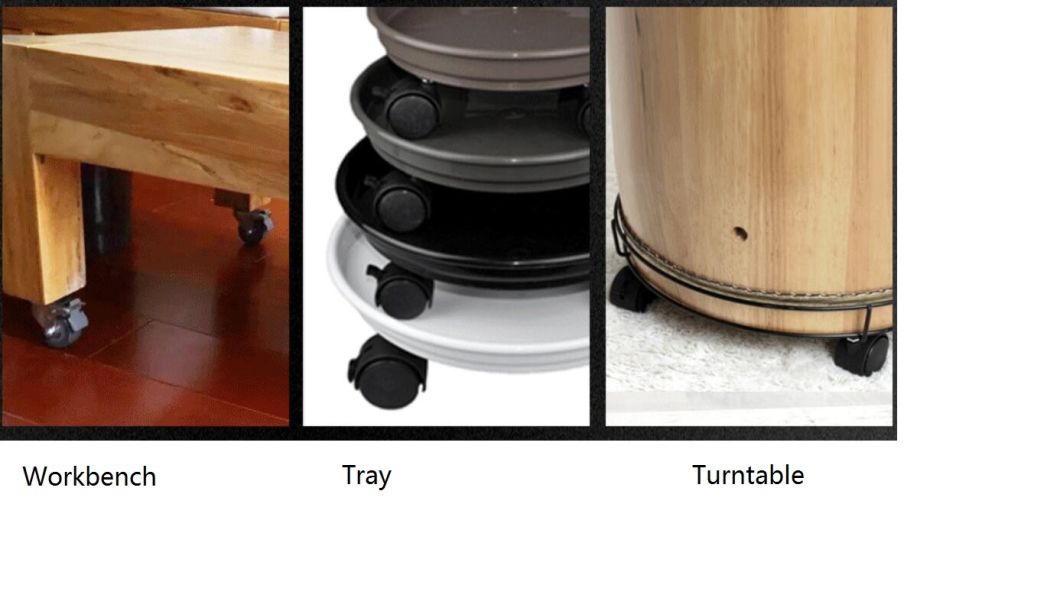

Applications: Easy to move and more labor-saving
Mini 2

How To Choose Casters

Using casters can reduce the work force and increase the work efficiency,The right caster should be chosen by the manner of application ,condition and request (for example facility,labour saving,durability).The factors must be considered as follows:

Applied environment
The floor materials,barriers,leftovers and the special environment,such as iron scraps,high or low temperature,great acidity and alkalescence,oil liquor,chemistry solvent and anti-static-electricity,should be considered when choosing the caster.The caster used in special environment should be made of special materials.

Mounting notice:

Plate:the fitted plate must be leveled,hard and firm.
Rigid:the direction of two wheels must be accordant and paralle.
Threaded:A spring shim should be fitted together to avoid loosing.

small rubber casters small swivel casters
