China Small Swivel Casters Mini 2" 35kg

Availability:



Inquire

Model:
26122H-262-56
Code:
8302200000
Port:
Ningbo, China
Production Capacity:
2500PCS/Month
Payment Terms:
L/C, T/T
Transport Package:
by Carton
Model NO.:
26122H-262-56
Thickness:
2.5mm
Category:
Mini
Wheel Width:
20mm
Plate Thickness:
2mm
Mounting Type:
Plate Brake
Bracket Width:
25mm
Installation Height:
70mm
Frame Material:
Cold-Rolled Plate
Coating:
Zinc Coating
Centre Material:
PP
Applicable Temp.:
-30ºC~70ºC
Tread Color:
Gray
Tread Hardness:
65A
Tread Material:
TPR
Trademark:
no
Origin:
Zhejiang
HS Code:
8302200000
Wheel Material:
TPE
Brake:
With Brake

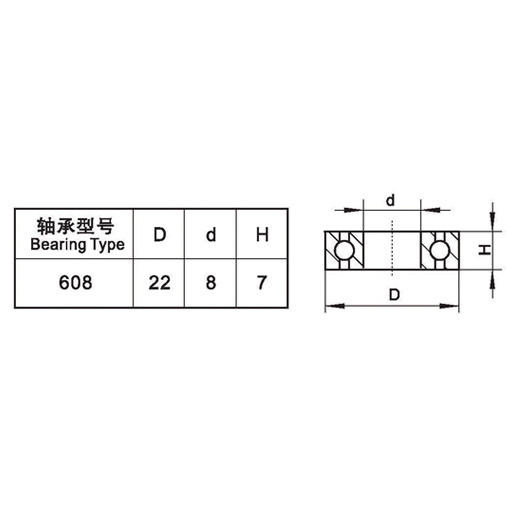

Bearing Type:
Dual Balls Bearing
Surface Treatment:
Zinc Plated
Maximum Load:
35kg
Diameter:
50mm

Product Description

Product Description

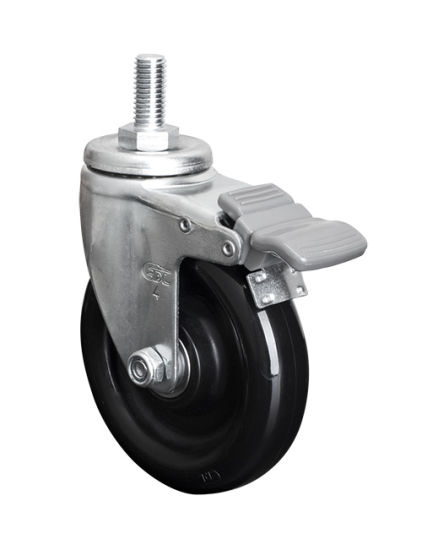

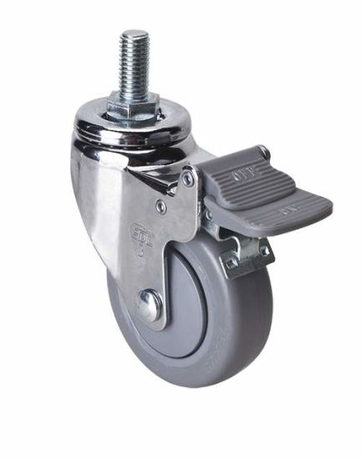

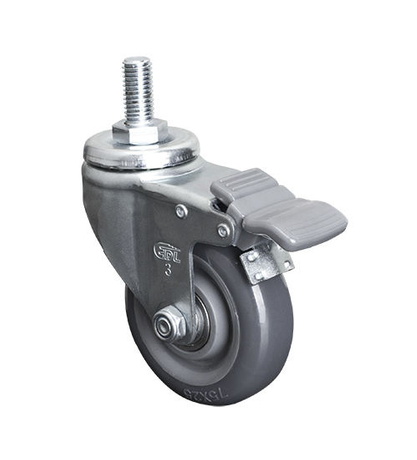

Product Photos:

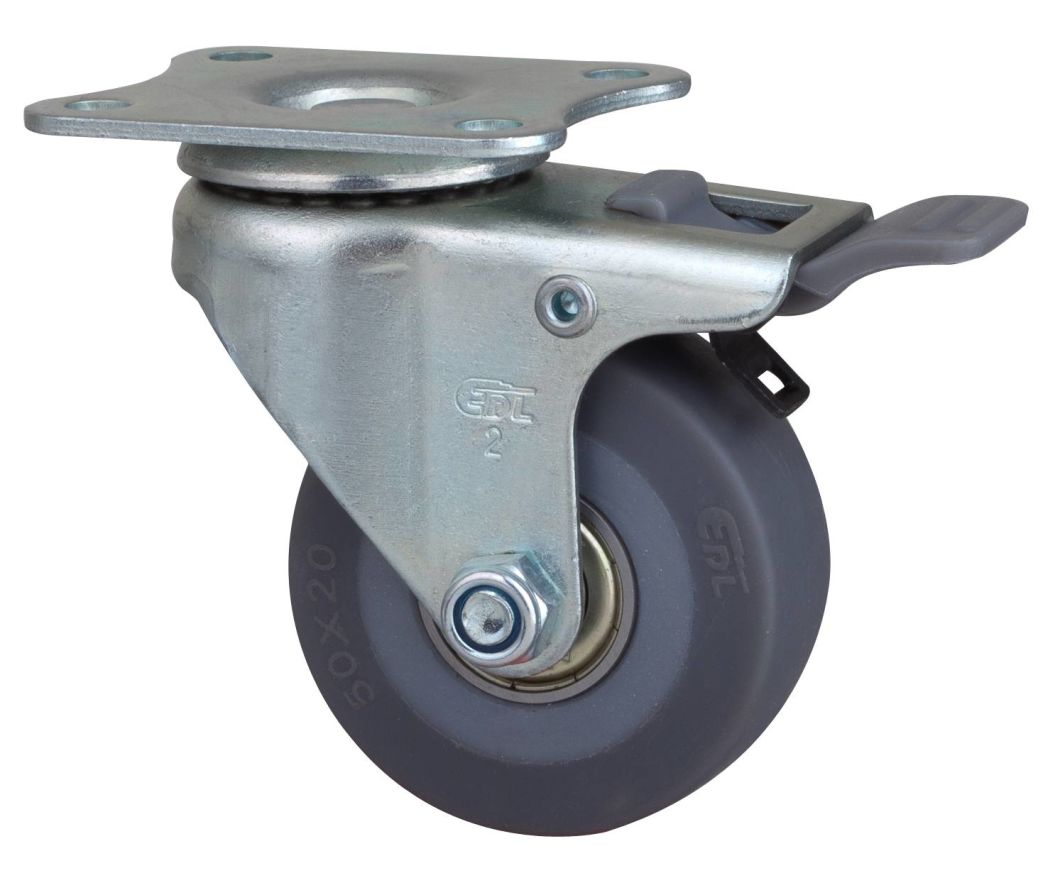

Mini 2

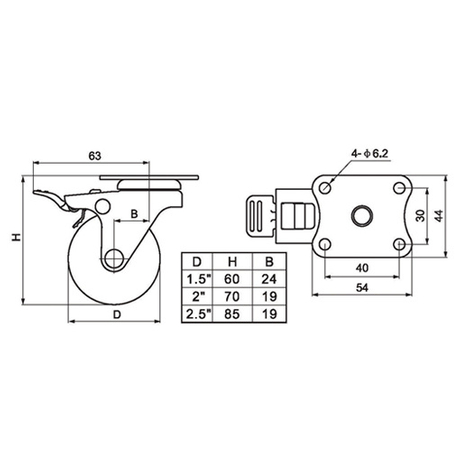

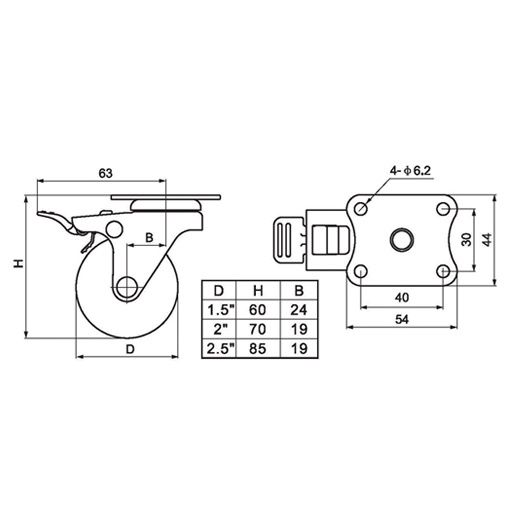

Mounting Instruction:

Applications: Easy to move and more labor-saving
Mini 2

How To Choose Casters

Using casters can reduce the work force and increase the work efficiency,The right caster should be chosen by the manner of application ,condition and request (for example facility,labour saving,durability).The factors must be considered as follows:

Applied environment
The floor materials,barriers,leftovers and the special environment,such as iron scraps,high or low temperature,great acidity and alkalescence,oil liquor,chemistry solvent and anti-static-electricity,should be considered when choosing the caster.The caster used in special environment should be made of special materials.

Mounting notice:

Plate:the fitted plate must be leveled,hard and firm.
Rigid:the direction of two wheels must be accordant and paralle.
Threaded:A spring shim should be fitted together to avoid loosing.

small swivel casters small rubber caster wheels
