Medium Duty Caster 6" 110kg

  • 57246H/M16X25-576-67
  • 8302200000
  • Ningbo, China
  • 2500PCS/Month
  • L/C, T/T
  • by Carton
  • 57246H/M16X25-576-67
  • 41mm
  • 196mm
  • Cold-Rolled Plate
  • PU
  • Chrome Coating
  • PP
  • -20ºC~80ºC
  • Black
  • 90A
  • no
  • Export Carton
  • Zhejiang
  • 8302200000
  • With Brake
  • 110kg
  • One Ball Bearing
  • Medium
  • 32mm
  • Threaded Brake

Product Description

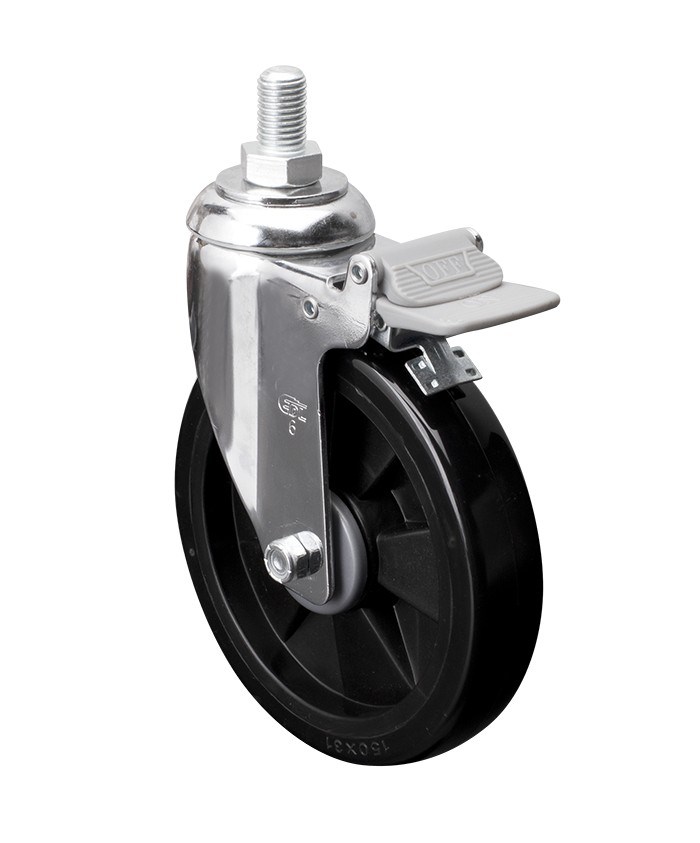

Product Photos:

150mm Medium 6

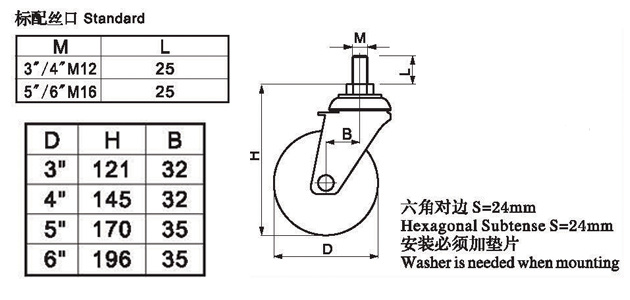

Mounting Instruction:



150mm Medium 6

150mm Medium 6

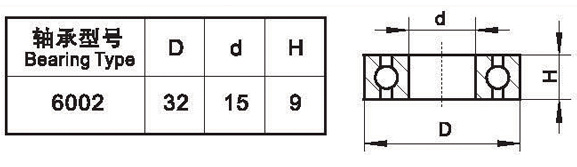

Category:Medium Rolling Bearing:One Ball Bearing
WheelWidth:32mm Plate Thickness:2.5mm
Diameter:150mm Load Capacity:110KG
ThreadHeight:25mm Mounting Type:Threaded Brake
BracketWidth:41mm Installation Height:196mm
FrameMaterial:Cold-rolled Plate Tread Material:PU
Coating:Chrome Coating Centre Material:PP
Applicable Temp.:-20ºC~80ºC Tread Hardness:90A
Tread Color:Black Bracket Thickness:2mm


Applications: Easy to move and more labor-saving
150mm Medium 6
150mm Medium 6

How To Choose Casters

Using casters can reduce the work force and increase the work efficiency,The right caster should be chosen  by the manner of application ,condition and request (for example facility,labour saving,durability).The factors must be considered as follows:

Applied environment
The floor materials,barriers,leftovers and the special environment,such as iron scraps,high or low temperature,great acidity and alkalescence,oil liquor,chemistry solvent and anti-static-electricity,should be considered when choosing the caster.The caster used in special environment should be made of special materials.
Mounting notice:
Plate:the fitted plate must be leveled,hard and firm.

Rigid:the direction of two wheels must be accordant and paralle.
Threaded:A spring shim should be fitted together to avoid loosing.
