Butt hinges are one of the most widely used hinge types in doors, cabinets, and industrial enclosures, yet they are often chosen by habit instead of by design. This manufacturer's guide explains what butt hinges are, how they work, how to measure and size them correctly, and how to install and adjust them.
What Are Butt Hinges?
A butt hinge is a two‑leaf hinge joined by a central pin and knuckle (also called the barrel), typically recessed (mortised) into both the door and the frame so that only the barrel is visible when the door is closed. It is the most common hinge style for doors as it combines a clean appearance with strong support.
Each butt hinge consists of:
Leaf: The flat plate fixed to the door or to the frame.
Knuckle (barrel): The alternating curled sections on each leaf that interlock.
Pin: The rod running through the knuckle that allows rotation.
Holes: Countersunk holes in each leaf for screws or other fasteners.
Because the leaves are mortised into the door and frame, butt hinges sit flush and create a strong, stable connection that can handle repeated opening and closing.
How Do Butt Hinges Work?
Butt hinges allow the door to rotate around the axis of the pin while transferring the door's weight into the frame.
One leaf is fixed to the edge of the door, the other to the frame or cabinet carcass.
The knuckles from both leaves interlock, and the pin passes through them to form a pivot.
As the door opens, it rotates around this pin; as it closes, the leaves fold together.
The load from the door is carried through the knuckles and pin into the screws and then into the frame, so for heavy or tall doors the number, type, and spacing of hinges are critical for long‑term performance.
Types of Butt Hinges and When to Use Them
Different butt hinge designs are optimized for different loads, environments, and use frequencies. Choosing correctly helps prevent sagging, squeaking, and premature wear.

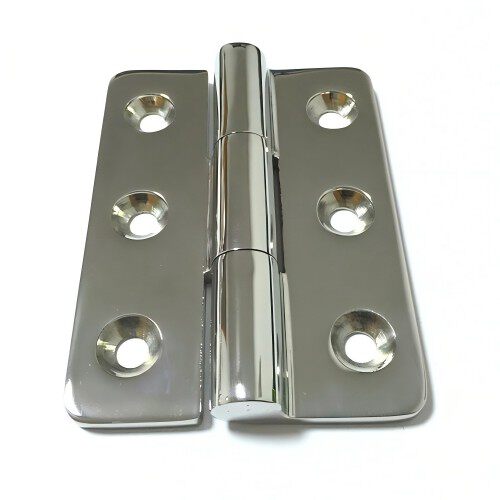

Plain bearing butt hinges: Rely on metal‑on‑metal contact between knuckles and pin. They are simple and economical for light internal doors with moderate use, but not ideal for heavy or high‑traffic doors because friction and wear build up over time.
Washered butt hinges: Use small nylon or phosphor‑bronze washers between the knuckles to reduce friction and noise. They suit light‑to‑medium interior doors in homes and light commercial settings where a smoother, quieter action is desirable.
Grease‑packed butt hinges: Lubricated with grease inside the knuckles to reduce friction and slow wear. They work well on medium‑duty doors, provided the lubrication is checked and maintained in demanding environments.
Ball bearing butt hinges: Incorporate ball bearings between the knuckles, so the leaves rotate smoothly around the pin even under higher loads. They are a standard choice for heavy entrance doors, high‑traffic commercial openings, and doors fitted with closers, where long service life and stable operation justify the higher initial cost.

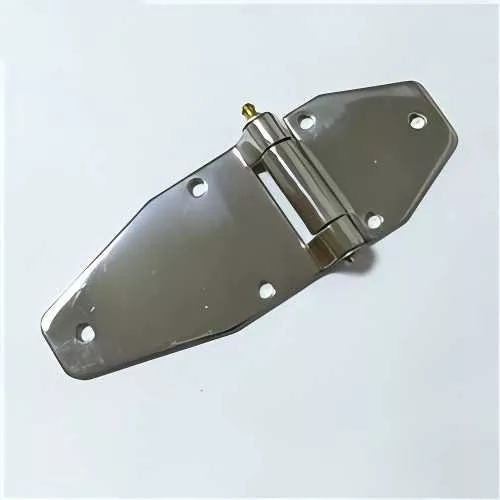

Heavy‑duty butt hinges: Have thicker leaves, larger knuckles, and stronger pins to handle higher loads and harsher conditions. They are typically specified for industrial doors and gates, security doors, large or oversize doors, and exterior gates, often with defined load ratings and test data.
Spring (self‑closing) butt hinges: Include a spring mechanism that closes the door once it is released. They are used where self‑closing is required, such as internal doors that must not be left open, light exterior doors, and certain cabinets or access panels; many designs allow the spring tension to be adjusted.
Rising butt hinges: Lift the door slightly as it opens and let it settle back down when it closes. This is useful where the door sweeps over carpet, uneven floors, or a raised threshold because it provides clearance while opening without leaving a large gap when shut.

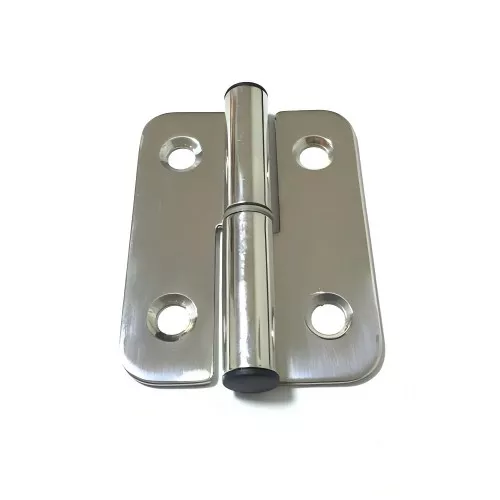

Lift‑off butt hinges: Allow a door or panel to be removed vertically without undoing screws, because one leaf is shaped so the other can be lifted off the pin. They are common on machinery covers, electrical cabinets, and service doors where regular access is required and downtime must be minimized.
These hinge types cover applications from light residential doors and furniture through to heavy commercial doors, security doors, and industrial equipment, so selecting the right type and size is critical.
Measuring and Sizing Butt Hinges
Accurate hinge measurement is essential for choosing a compatible replacement that fits without extra cutting or filling.
Key Dimensions You Need to Know
Butt hinges are usually specified by height × width. The main dimensions are:
Height: distance from the top of the hinge to the bottom when fully open.
Leaf width: distance from the hinge pin centreline to the outside edge of one leaf; doubled, this gives the approximate open width.
Thickness (gauge): thickness of each leaf, important for load capacity and mortise depth.
Corner type: square or radius corners, which must match the mortise.
Hole pattern: number, spacing, and position of screw holes.
How to Measure a Butt Hinge
When you need to replace or specify a butt hinge:
Open the hinge flat on a table, or remove it from the door so it can be laid flat.
Measure the overall height from top to bottom.
Measure from the pin centreline to the outer edge of one leaf and double this to estimate the open width.
Measure leaf thickness with calipers if available.
Note whether the corners are square or radius, and record the hole pattern.
Supplying these measurements to your manufacturer or supplier greatly improves the chance of receiving a compatible hinge.
How to Size Hinges for a Door
When you size hinges for a door, consider several factors together:
Door height and number of hinges: a small internal door around 60 inches high often uses two hinges; doors between roughly 60 and 90 inches usually use three; and very tall doors up to around 120 inches commonly require four for stability.
Door weight: light hollow‑core interior doors can use standard plain or washered hinges, while heavy solid doors or doors fitted with closers typically need ball bearing or heavy‑duty hinges with suitable load ratings.
Door thickness and width: thicker and wider doors usually benefit from hinges with greater height and open width so the leaves provide enough bearing surface and clearance.
Usage frequency: doors in high‑traffic commercial or industrial settings need higher‑grade bearing hinges and sometimes an additional hinge, because they cycle many more times than occasional‑use doors.
When there is any doubt, choosing a slightly higher‑grade hinge and one extra hinge is usually safer than under‑specifying and facing sagging or early wear.
How to Install and Adjust Butt Hinges
Good butt hinges only perform well when they are installed accurately. Careful marking, mortising, and fixing will give you a door that swings freely, has even gaps, and needs only minor adjustment over time.
Tools and Preparation
Hinges and matching screws
Tape measure and marking gauge
Sharp pencil or marking knife
Chisels and mallet
Drill and suitable bits (a self‑centring bit is ideal for screw holes)
Router for mortises (optional but helpful)
Make sure the door itself is the correct size for the opening so you are not asking the hinges to correct a badly sized door.
Marking and Cutting Mortises
Decide hinge positions (typically one near the top, one near the bottom, and one in the middle for a full‑height door, unless your project specifies otherwise).
Hold each hinge against the door edge and scribe around the leaf with a marking knife for a crisp outline.
Set a marking gauge to the leaf thickness and mark the mortise depth on the door edge.
Remove most of the waste with a router or careful chisel work, then finish to the lines with a sharp chisel so the hinge sits just flush with the surface.
When the door mortises fit well, hang the door temporarily in the opening and use the hinge positions to mark matching mortises on the frame or cabinet. Cut these in the same way so the barrels line up neatly.
Fixing the Hinges and Hanging the Door
Position each hinge leaf in the door and drill pilot holes, ideally using a self‑centring bit to keep the screws true.
On brass hinges, "tap" each hole with a steel screw first, then fit the brass screws to reduce the risk of twisting off the heads.
Secure all hinges to the door, then lift the door into the opening and locate the frame‑side leaves in their mortises.
Drill pilot holes in the frame and drive the screws home, checking that the barrels line up and the leaves stay flush.
When everything is fixed, open and close the door several times and check the gap around the edges. It should be even, and the door should move smoothly without rubbing.
Installation Checks and Simple Adjustments
If the door rubs at the top, deepen the top hinge mortise slightly or add a thin shim behind the lower hinge to change the angle of the door.
If the door rubs along the latch side, adjust the depth of one or more hinge mortises to bring the door edge closer to or further from the frame and even out the gap.
If the gap is uneven, check for loose or undersized screws and replace them with longer screws into solid framing to pull the hinge back into position.
For squeaks, a small amount of suitable lubricant on the pin and knuckles usually restores quiet operation. If hinges continue to loosen or show obvious wear such as oval knuckles or bent pins, it is normally better to replace them with a heavier‑duty or bearing‑type hinge instead of repeatedly adjusting worn hardware.
How to Choose the Right Butt Hinge for Your Use
A simple, structured approach helps match hinge performance to the application and avoid problems later.
Start with the door or panel: define its height, width, thickness, weight, usage frequency, and whether it will be used indoors, in humid areas, outside, or in a corrosive environment.
Choose a hinge type that matches those conditions: plain or washered hinges for light interior doors; ball bearing or heavy‑duty hinges for heavy or high‑traffic doors; spring hinges where self‑closing is needed; rising hinges where the door opens over carpet or uneven floors; and lift‑off hinges where panels must be removed frequently.
Decide size and quantity based on height and weight: standard doors often use three hinges, shorter or lighter doors can sometimes use two, and taller or heavier doors may need four, with hinge height and width matched to the door section using sizing charts or manufacturer guidance.

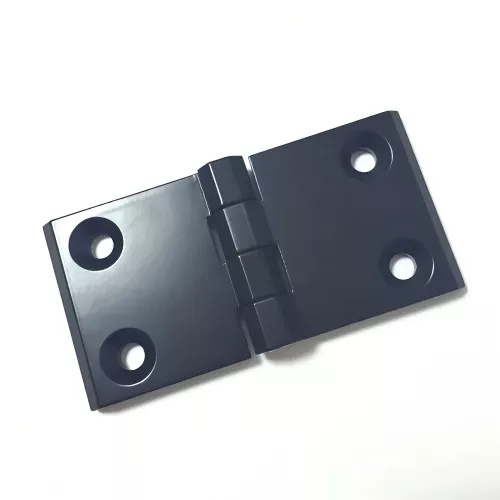

Select a material and finish that fits the environment and appearance requirements: plated steel for most dry interiors, stainless steel for exterior or corrosive settings, and brass or specialty finishes where aesthetics are important.
