When a metal door, gate, or enclosure has to carry real weight and keep working in harsh conditions, weld-on hinges are often a preferred option where load capacity, durability, and permanence matter more than easy removal. They create a permanent, compact connection that stands up to heavy load and high-cycle use far better than most screw‑fixed hinges. This guide covers key hinge types, selection factors, and practical welding tips for reliable results.
What Weld-On Hinges Actually Are

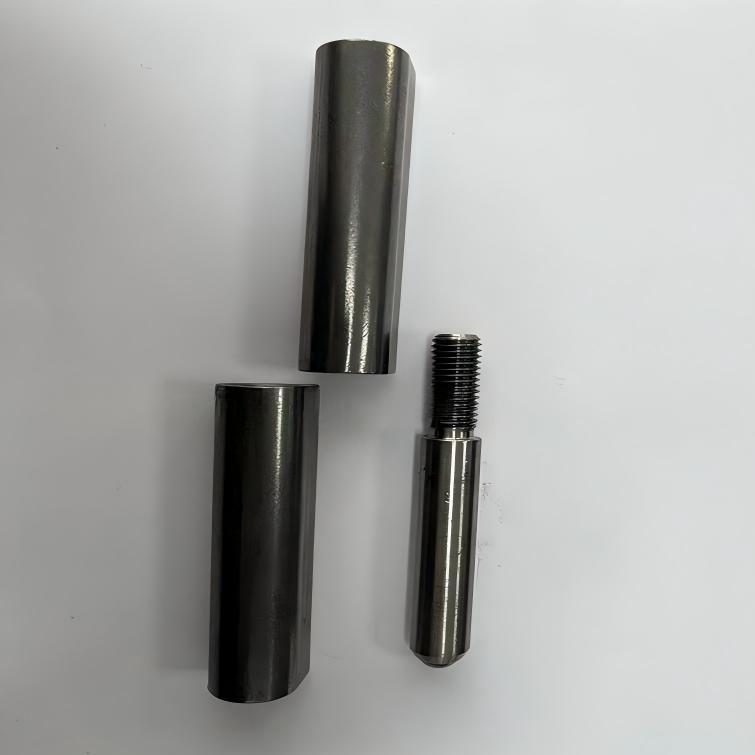

Weld-on hinges are hinge assemblies with compact "wings" or barrels that are welded directly to the frame and the moving leaf instead of being fastened with screws or bolts. Because the hinge and structure become one piece of metal, they handle higher loads, vibration, and abuse than most mechanical fasteners can when correctly specified and installed.
They are commonly used on:
Industrial and commercial gates.
Machinery guards and equipment doors.
Security doors and access-controlled entries.
Equipment enclosures and housings.
Tool cabinets, trailer ramps, and other fabricated steel structures.
Once installed, they normally need little adjustment over their service life, which is why getting the selection and installation right upfront is critical for fabricators and OEMs.
Main Weld-On Hinge Types and Where They Fit
Different projects call for different weld-on constructions; below is how the main families break down in practice.

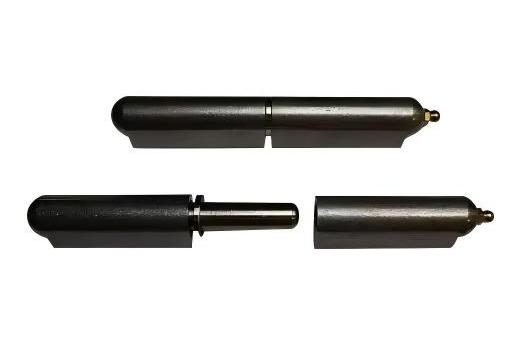

Weld-On Bullet / Barrel Hinges
Compact cylindrical body with an internal pin and often a bushing or bearing, commonly referred to as bullet or barrel hinges depending on the supplier.
Terminology varies by supplier; bullet and barrel weld‑on hinges are very similar in function and construction, with differences mainly in body shape, dimensions, and detailing.
Designed for heavy doors, gates, and equipment access panels that need smooth, repeatable motion with high load capacity and a clean appearance.
Common on: industrial gates, heavy steel doors, smokers, containers, machinery doors, and security enclosures where the hinge is partially or fully concealed.
Many heavy-duty barrel designs sit largely hidden when the door is closed, which adds security and protects the hinge from impact; they also need precise alignment and proper weld length to avoid binding. Many designs include grease fittings or bushings so maintenance is limited to periodic lubrication.

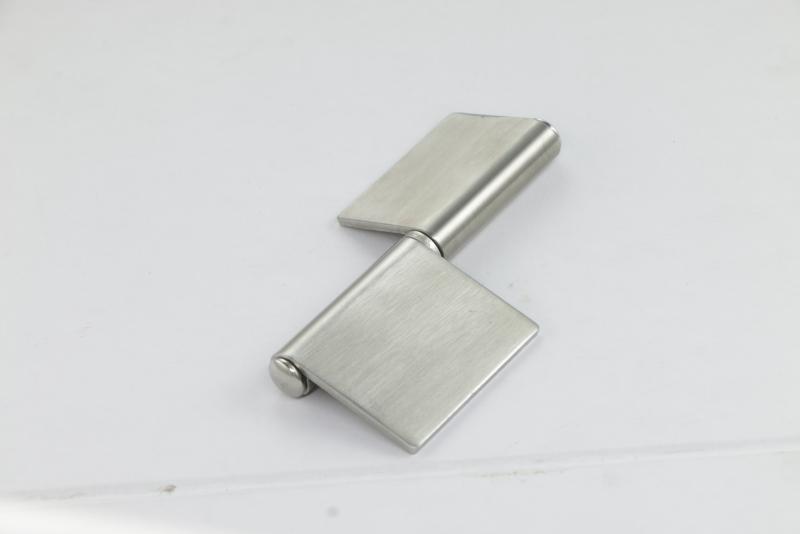

Weld-On Flag (Lift-Off) Hinges
Two "flag" leaves that mate around a vertical pin, forming a lift-off assembly; one side is welded to the frame, the other to the door or panel.
The big advantage is that the door or cover can be lifted off the hinges for service or access, without unbolting hardware.
Common on: machinery covers, equipment enclosures, shipping containers, industrial cabinets, and any panel that must be removed regularly but stay secure in operation.
When specifying flag hinges, the orientation of the fixed pin is important: pin-down installation discourages accidental lift-off, while pin-up favors frequent removal. Stainless steel flag hinges, typically in grades such as 304 or 316, offer improved corrosion resistance for outdoor or marine environments.

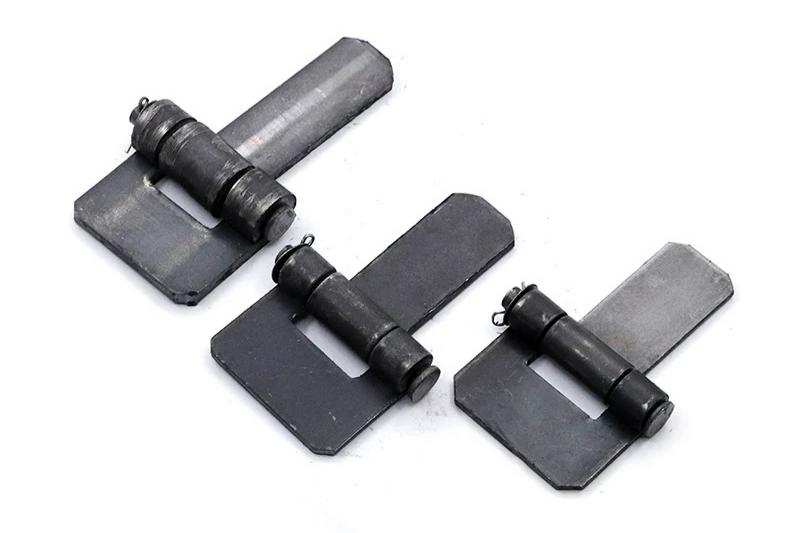

General Weld-On Strap Hinges
Straight or formed leaves designed to be directly welded, usually simpler profiles for gates, doors, and frames; many catalogs group these as weld-on strap or gate hinges.
Best where aesthetics are secondary to function and there is enough space for a straightforward weld bead.
Common on: farm and yard gates, utility doors, service hatches, equipment frames, and structural steelwork.
These are often chosen when cost and simplicity are the main drivers, and when installers are comfortable jigging longer hinge leaves to keep the pin axis straight during welding. Because the leaves are longer, they can pull more as they cool, so good fixturing and a balanced welding sequence help prevent the frame twisting out of square.
Quick View: Which Weld-On Hinge for Which Job
Application | Recommended Hinge Type | Key Reason |
Heavy security gate or large metal door | Bullet / heavy-duty barrel | High load capacity, compact form, tamper resistant when recessed or hidden |
Machinery guard or removable enclosure | Weld-on flag (lift-off) | Fast removal without tools; strong welded attachment |
Outdoor container or equipment housing | Stainless flag or bullet | Corrosion resistance plus lift-off or high load |
Simple farm or yard gate | Weld-on strap / gate hinge | Easy fabrication, robust under field conditions |
Enclosures or doors with limited space | Compact bullet hinge | Small footprint with high capacity |
Choosing Weld-On Hinges for Industrial and Gate Projects
For OEMs, fabricators, and gate builders, hinge selection usually comes down to five technical questions.
Load and Duty Cycle
Start with door, gate, or enclosure door weight plus a safety factor, especially for wide or high-cycle installations.
High-load, high-frequency applications typically call for heavy-duty bullet or barrel hinges with hardened pins and bushings, often with grease fittings.
On heavy or high‑cycle installations, it's common to select hinges with a load rating roughly 1.5–2 times the calculated door or gate weight to provide margin against impact, vibration, and fatigue.
Material and Corrosion Environment
For outdoor or corrosive environments—coastal, chemical, washdown—stainless steel or properly coated carbon steel hinges significantly extend service life.
Match hinge material to the frame and leaf where possible: carbon steel to carbon steel, stainless to stainless.
Using a carbon steel hinge on a stainless frame, or vice versa, can increase the risk of corrosion or cracking if filler metal and prep are not chosen correctly; specialized fillers like 309L are often recommended for carbon-to-stainless joints, but the exact choice should follow the welding procedure and service environment.
Security and Tamper Resistance
Because weld-on hinges have no exposed screws, they are inherently harder to remove or tamper with, making them a natural fit for security gates, restricted-access doors, and secure equipment enclosures.
Concealed heavy-duty barrel hinges mounted behind a gate or door edge add another layer of protection because they are difficult to attack directly.
For installations where "permanent" really matters, installers may orient the top lift-off style hinge upside down so the leaf cannot be lifted off the pin.
Serviceability and Removal
If panels must be removed regularly (service doors, machinery guards, equipment covers), lift-off hinges can save significant service time over the life of the equipment.
If removal is rare or undesirable—security gates, external doors, high-security enclosures—fully welded bullet or barrel hinges without easy lift-off prevent unplanned disassembly.
This tradeoff (convenience versus security) is often decided at the design stage; changing it after welding typically requires cutting hinges off and starting over.
Aesthetics and Space
Bullet and barrel hinges give a clean, minimal look and can be partially recessed; strap-style weld-on hinges are more visible but often more forgiving to weld and inspect.
On compact enclosures or smoker doors, small bullet hinges provide clearance where traditional butt hinges simply won’t fit.
Most projects end up balancing appearance, clearance, and weldability against load and serviceability, which is why compact bullet designs are common wherever space is tight but performance and longevity still matter.
How to Weld Hinges on a Metal Gate: Example Overview
Welding technique and alignment determine whether even a premium hinge will perform well.
Preparation and Layout
Clean the weld areas on both gate and post or frame using a grinder or wire brush to remove rust, scale, paint, and oil.
Mark hinge locations carefully with tape measure and marker, making sure top and bottom marks are in line vertically.
Good practice is to position hinges to distribute load evenly—typically near the top and bottom of the gate, with extra hinges for heavy or tall leaves. Checking vertical and horizontal alignment with a level or straight edge at this stage helps prevent binding later.
Tack Welding and Alignment
Clamp the hinge parts in place and apply small tack welds to hold them, rather than committing to a full weld immediately.
With the gate tacked, swing it through its full travel to confirm that it opens and closes freely without dragging, binding, or lifting.
If movement is tight or uneven, minor adjustments can still be made at the tack stage by cutting and re-tacking before final welding. This step is where installers correct for any slight warping or misalignment created by heat input.
Co-Linear Hinge Axis
The centerlines of all hinges on the gate must be co‑linear; even a small misalignment can cause hinge binding and premature wear or pin failure.
Using jigs, straight edges, or laser alignment tools helps maintain a straight hinge axis across multiple hinge positions.
In high-load applications, installers often check swing with shims and adjust before laying down final beads, because correcting misalignment after full welding usually means cutting the hinge off completely and starting over.
Final Welding and Weld Sizing
After confirming alignment, complete the welds with adequate penetration, avoiding relying on tacks for anything beyond temporary support.
Good practice is to cover most of the barrel or leaf length with a continuous weld, often in the range of roughly 70–90% of the hinge length, and to size the fillet approximately in proportion to hinge thickness and design loads.
Once welds are complete and cooled, the hinge area can be dressed with an angle grinder if needed and then primed or coated to help prevent corrosion. A final functional check confirms the gate swings under its own weight without noticeable resistance or noise.
Typical Mistakes and How to Avoid Hinge Issues
Learning from common field problems helps keep installations trouble-free.
Misaligned hinge centers: even small angular errors between hinges generate side loads and binding; careful layout, jigging, and test swings before final welds prevent this.
Insufficient weld length: short or intermittent welds on heavy gates or doors can crack under load; covering the majority of the hinge contact length distributes forces better.
Ignoring heat distortion: heavy welds on thin sections can pull the gate or door out of square; tack-welding symmetrically and checking movement as you go reduces warping.
Mismatched materials: welding carbon hinges to stainless or other dissimilar metals without correct filler and prep can accelerate corrosion and lead to premature joint failure.
Under-specifying hinge type: using light-duty or non-bearing hinges for high-cycle or high-load installations shortens maintenance intervals and can create safety issues.
When problems do appear—such as sagging, stiff operation, or visible cracking—the usual remedy is to cut the hinge off, clean and re-prepare the surfaces, and reinstall with corrected alignment, weld size, and, if needed, a higher-capacity hinge.
