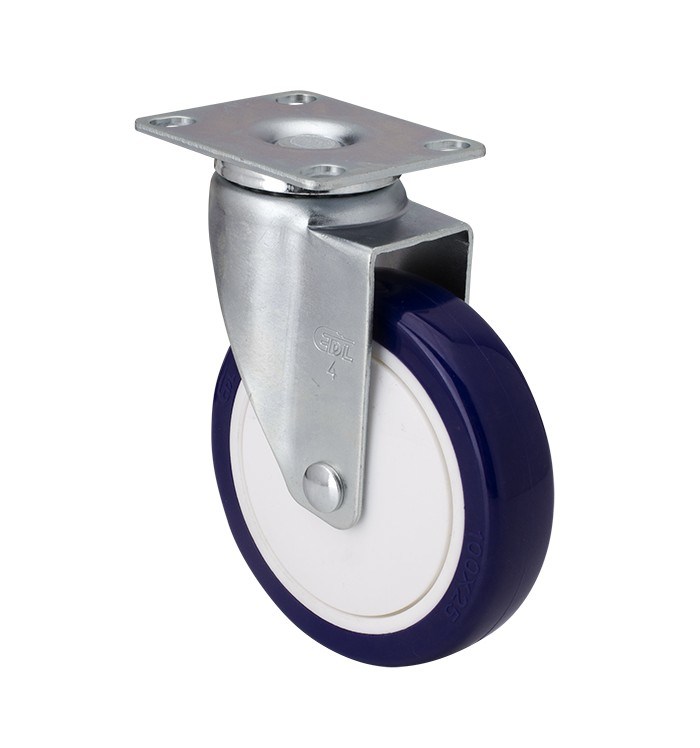

Caster 37114-374-87
8302200000
Ningbo, China
2500PCS/Month
L/C, T/T
by Carton
Caster 37114-374-87
Threaded Brake
33mm
130mm
Cold-Rolled Plate
TPU
Zinc Coating
PP
-20ºC~80ºC
Blue
90A
no
Export Carton
Zhejiang
8302200000
With Brake
Zinc Plated
100mm
One Ball Bearing
Light
25mm
Product Description
| Category:Light | Rolling Bearing:One Ball Bearing |
| WheelWidth:25mm | Plate Thickness:2.5mm |
| Diameter:100mm | Load Capacity:80KG |
| ThreadHeight:25mm | Mounting Type:Plate Brake |
| BracketWidth:33mm | Installation Height:130mm |
| FrameMaterial:Coldrolled Plate | Tread Material:TPU |
| Coating:Zinc Coating | Centre Material:PP |
| Applicable Temp.:-20ºC~80ºC | Tread Hardness:90A |
| Tread Color:blue | Bracket Thickness:2mm |
Using casters can reduce the work force and increase the work efficiency,The right caster should be chosen by the manner of application ,condition and request (for example facility,labour saving,durability).The factors must be considered as follows:
Rigid:the direction of two wheels must be accordant and paralle.
Threaded:A spring shim should be fitted together to avoid loosing.
