Large Industrial Casters

  • 37124H-374-87
  • 8302200000
  • Ningbo, China
  • 2500PCS/Month
  • L/C, T/T
  • by Carton
  • 37124H-374-87
  • Threaded Brake
  • 33mm
  • 130mm
  • Cold-Rolled Plate
  • TPU
  • Zinc Coating
  • PP
  • -20ºC~80ºC
  • Blue
  • 90A
  • no
  • Export Carton
  • Zhejiang
  • 8302200000
  • With Brake
  • Zinc Plated
  • 100mm
  • One Ball Bearing
  • Light
  • 25mm

Product Description

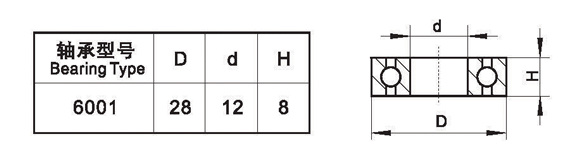

Rolling Bearing:One Ball Bearing
WheelWidth:25mm Plate Thickness:2.5mm
Diameter:100mm Load Capacity:80KG
ThreadHeight:25mm Mounting Type:Plate Brake
BracketWidth:33mm Installation Height:130mm
FrameMaterial:Coldrolled Plate Tread Material:TPU
Coating:Zinc Coating Centre Material:PP
Applicable Temp.:-20ºC~80ºC Tread Hardness:90A
Tread Color:blue Bracket Thickness:2mm
Category:Light

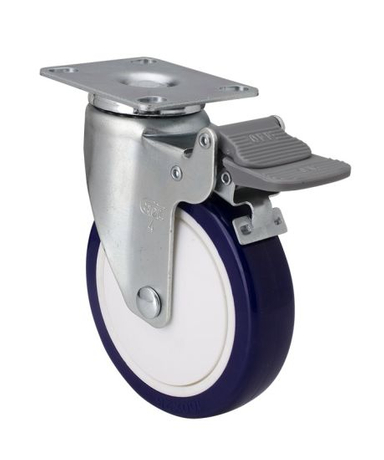

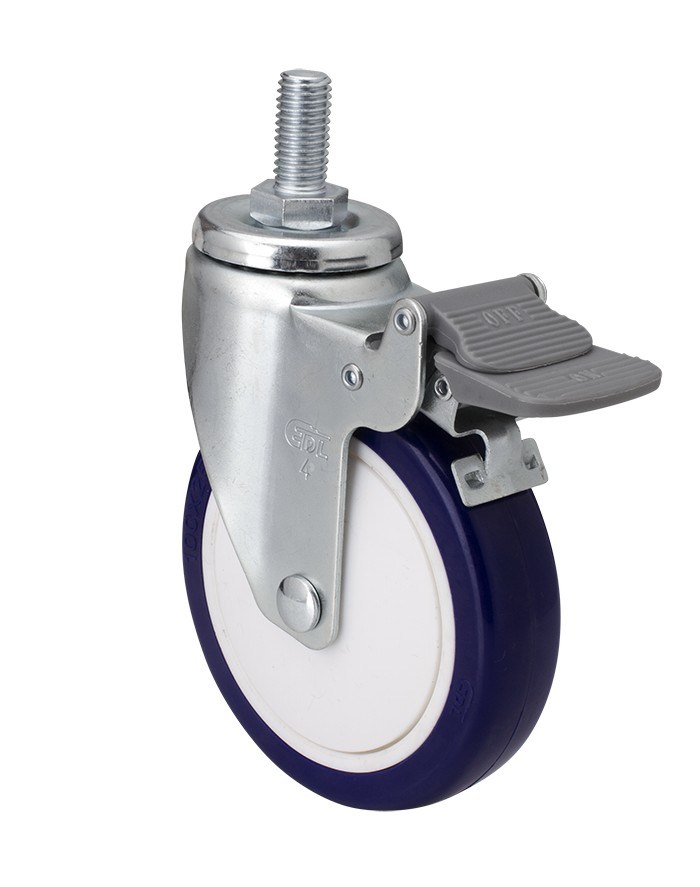

Product Photos:

100mm Zinc 4

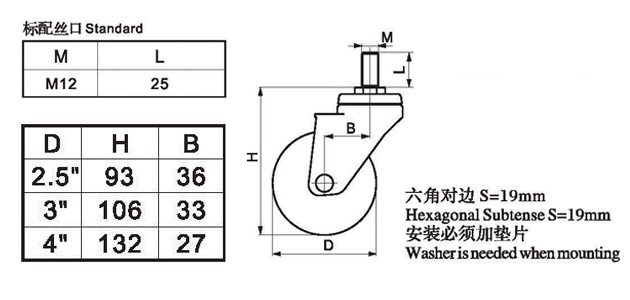

Mounting Instruction:

100mm Zinc 4
100mm Zinc 4
100mm Zinc 4

Applications: Easy to move and more labor-saving
100mm Zinc 4
100mm Zinc 4

How To Choose Casters

Using casters can reduce the work force and increase the work efficiency,The right caster should be chosen  by the manner of application ,condition and request (for example facility,labour saving,durability).The factors must be considered as follows:

Applied environment
The floor materials,barriers,leftovers and the special environment,such as iron scraps,high or low temperature,great acidity and alkalescence,oil liquor,chemistry solvent and anti-static-electricity,should be considered when choosing the caster.The caster used in special environment should be made of special materials.
Mounting notice:
Plate:the fitted plate must be leveled,hard and firm.

Rigid:the direction of two wheels must be accordant and paralle.
Threaded:A spring shim should be fitted together to avoid loosing.
