DP-7
Ningbo, China
500PCS/Month
L/C, T/T
by Carton
DP-7
CE, ISO9001
Non-Customized
New
Slide System with Acetal Roller Bearing
348+1mm
135+1mm
383mm
170mm
425mm
128mm
425mm
128mm
115mm
no
Export Standard Carton
Zhejiang
Inserted Handgrip, Modern
Stainless Steel
Stainless Steel
Path Rail
U Style
Silver
Product Description

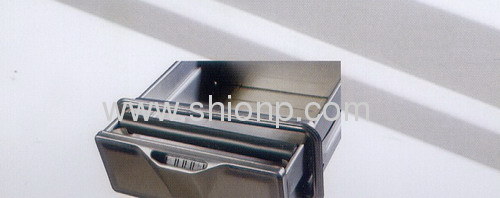

Description of the stainless steel kitchen drawer:
Materials:stainless steel
System:Slide system with acetal roller bearing
Modular system
Feature:Inserted handgrip
Standard slides, telescopic slides
Feature of the stainless steel kitchen drawer:

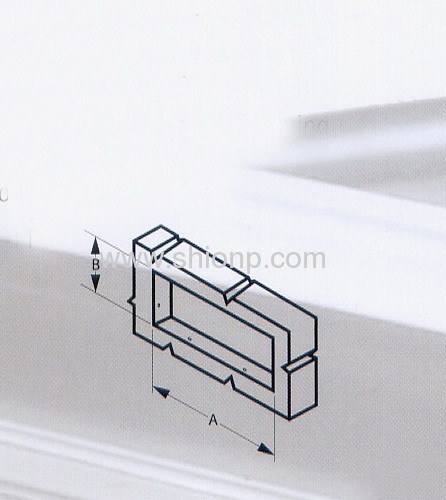

size in drawing | size(mm) |
A-hole length | 348+1 |
B-hole width | 135+1 |
C-front width | 383 |
D-front height | 170 |
E-box length | 368 |
F-box width | 317 |
H-box height | 115 |
L-external length | 425 |
U-external height | 128 |
